Guide to replacing the radiator of the Kia Picanto.

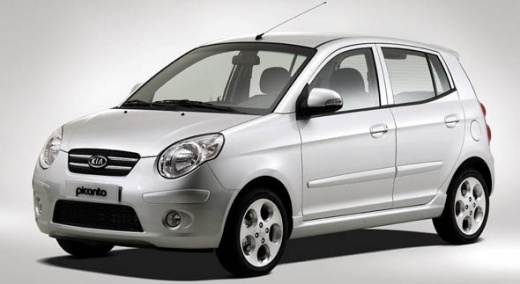

Model: Kia Picanto 2A, MK 1 - Years 2004-2011
Part: Radiator

Today's guide will show us the main instructions for disassembling and replacing the radiator of the Kia Picanto. First, we open the engine hood of the vehicle and start disassembling and removing the front bumper by unscrewing all the fastening screws. Then, we unscrew the radiator fan screws and the electrical connector, and disconnect the radiator pipe to drain the coolant into a container. At this point, we unscrew the radiator bracket screws to remove it, replacing it with the new one by applying the reverse procedure!

Posted on 24 April 2023 by ScegliAuto

Video tutorial
